When it comes to pipeline take-away constraints out of the Permian, the spotlight has largely been on natural gas and NGLs. However, Permian crude oil takeaway pipeline situation is not far behind and remains dynamic given the possibility of positive FIDs on multiple large offshore crude oil terminals in the U.S. Gulf Coast. Understanding and navigating the complexities of the evolving crude oil takeaway pipeline situation from the Permian Basin is essential for stakeholders across the energy sector to effectively manage risks and capitalize on opportunities in this dynamic environment. This article provides benchmarking of crude oil egress from the Permian and provides perspectives on impact on regional flows due to future large offshore export terminals.

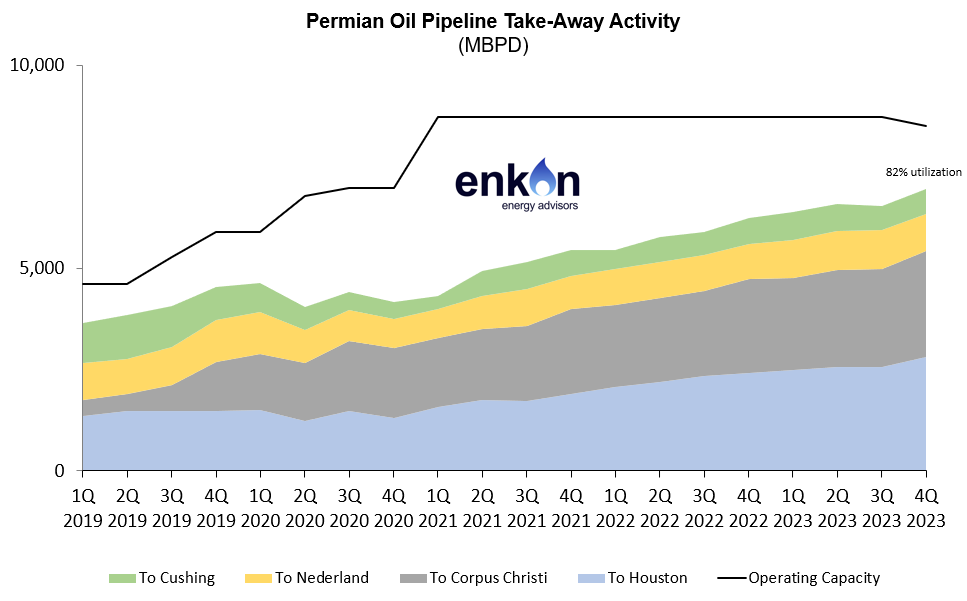

Permian crude oil production lags midstream

By Late 2018, pipeline infrastructure to move crude oil out of the Permian basin faced constraints with high-utilization rates reported on several pipelines. This impacted the in-basin crude oil prices and the market responded by adding new pipeline capacity.  Between 2019 to 2021, there were five new pipelines commissioned enhancing crude oil transportation capacity out of the basin. Of the five, three pipelines were added targeting the Corpus Christ market including Cactus II, EPIC, and Gray Oak which added ~2.2 MBPD of incremental capacity. Two pipelines added capacity to Houston refining and export hub which were Midland to Echo III, and Wink-to-Webster with total capacity of ~1.9 MBPD.  These capacity additions provided needed relief and marketing options for Permian oil producers.

Despite the temporary alleviation of capacity concerns, recent trends indicate a resurgence of take-away capacity challenges. With continued growth in crude oil production in Permian basin, availability of spare capacity has once again reared its head, particularly concerning specific pipeline routes to the gulf coast. In 4Q 2023, the conversion of the ME II pipeline from crude oil to NGL transport by Enterprise reduced oil pipeline capacity to Houston by 225 MBPD. The combination of increased oil volumes and diminished capacity heightens the risk of disruptions in the market, especially in the event of pipeline outages.

Permian Growth Outlook and Incremental Capacity Considerations

Expectation of favorable oil prices will likely continue to add significant crude oil volume out of the Permian.  Enkon forecast suggests ~1.2-1.4 million bpd of crude oil production increase from the Permian by the end of 2030.  However, factors such as multiple E&P consolidations in the Permian in the past 12 months have reduced presence of nimble independent producers which may affect the pace of production growth. Regardless, incremental crude oil barrels would need to move on pipelines predominately to the gulf coast or northbound for storage in the mid-continent market. One of the key considerations for future capacity additions is the impact of future offshore crude oil export terminals on flow patterns out of the Permian.  Since these offshore export terminals can load VLCC (Very Large Crude Carrier) with capacity of 2 Million barrels in a day, they have the scale to impact regional flow dynamics. For example, while Corpus Christi has seen the lion share of U.S. crude exports (keeping Permian pipeline to Corpus Christi full), an offshore export terminal sourcing crude from Nederland or Houston will attract spot barrels or barrels that are not yet committed to any expansion project.

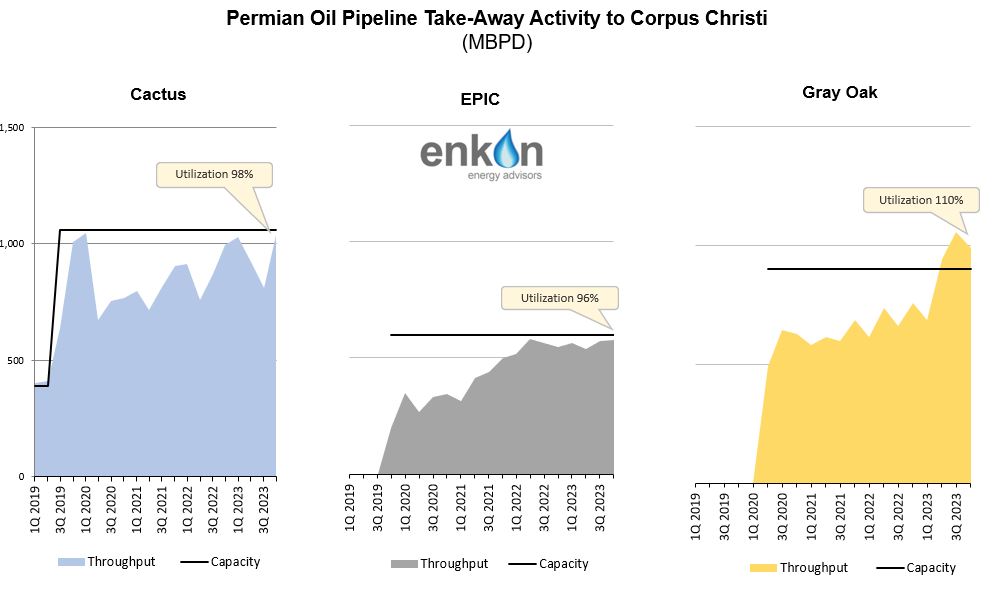

Route to Corpus Christi is already constrained

By the end of 4Q 2023, pipelines servicing the Corpus Christi corridor had reached full capacity with Gray Oak surpassing its designed capacity. There are several reasons for attractiveness of Corpus Christi – superior netback economics for producers, less co-mingling of crude grades/better quality oil to export terminals, better marine loading economics, and less marine congestion compared to other ports. Some relief is coming soon. The Gray Oak pipeline has two incremental expansions planned.  They are planning to add 80 MBPD in 2024 and will likely add another 40 MBPD in 2025.   Current pipelines may be able to increase capacity by adding horsepower, for example, EPIC crude pipeline can add up to 300 Mb/d capacity if market conditions support proceeding with such an expansion. New greenfield pipeline being built to Corpus Christi may be a riskier proposition. New VLCC-capable offshore export terminals, if sanctioned, can undercut economic advantage of shipping crude to Corpus Christi. The offshore terminal scenario will likely prohibit any new pipelines on this route until it is known if any of these terminals will be built. With the Corpus Christi corridor being full, shippers will have to move to other routes like to Houston or Nederland.

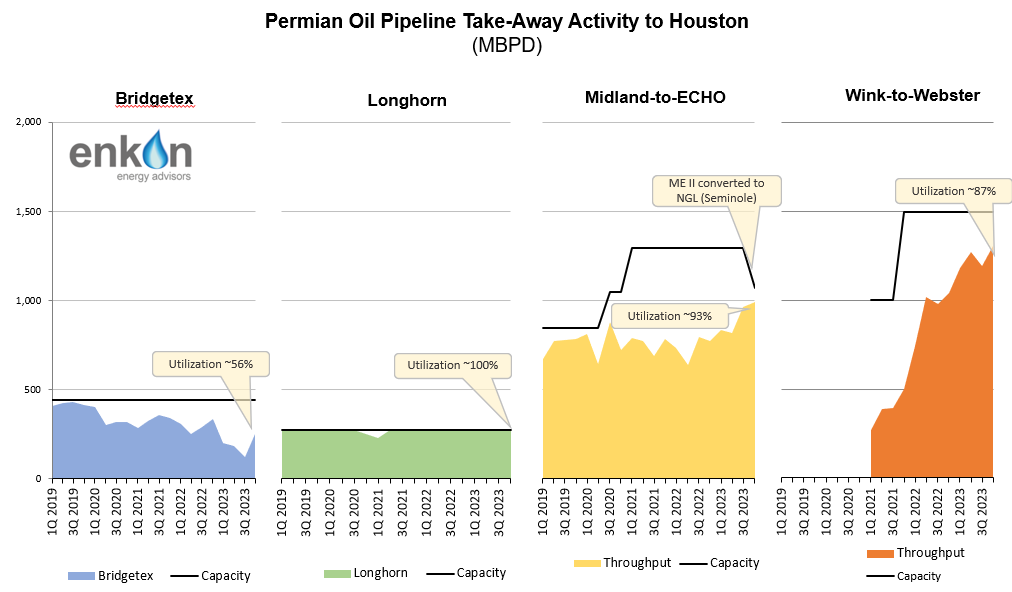

Route to Houston is filling fast

Aggregate utilization of pipeline route to the Houston was at 86% in Q4 2023.  Midland-to-Echo was approaching full utilization after Enterprise converted MEII to NGL service at the end of 2023.  Longhorn has also been operating near full capacity, and Wink-to-Webster is not far behind. Bridgetex is the most available outlet to Houston at this time. With market signaling the need for more capacity down the road, Enterprise Products is planning on returning the Seminole NGL capacity back to ME II oil capacity in the middle of 2025.  Beyond Enterprise conversion, there are no other expansions planned at this time.

Routes to Nederland and Cushing remain underutilized

The route to Nederland was operating at 62% utilization with individual pipelines experiencing varying degrees of capacity utilization. West Texas Gulf pipeline was operating at ~90%.  For the last year Permian Express has been operating between 65% and 80% utilization. While the corridor as a whole seems to possess adequate capacity, operational issues on specific pipelines could pose risks.

Pipelines transporting oil north from the Permian Basin to midcontinent markets boast sufficient capacity, barring the exception of P66 WA Line 80 to Borger which fluctuated between 65% and 100% utilization rates last year.  This pipeline corridor, although less economical, also presents an alternative for shippers aiming to access the Gulf Coast when direct routes from the Permian Basin are not feasible for their volume requirements.

Commercial Implications

In summary, while there are plans for expansion and conversion to address capacity issues, multiple individual pipelines within the corridors to the Gulf Coast are currently at full capacity. This presents individual pipeline risk that needs to be managed effectively. A big unknown that will impact pipeline additions out of Permian will be the potential for commercialization of VLCC capable offshore export terminals. In addition to the Enterprise Products’ SPOT terminal which recently received all regulatory approvals, there are three more offshore terminals proposed in Texas and Louisiana totaling 6 million barrels of crude per day.  Key questions remain:

1. Will any of these be approved and built? If so, how much capacity and when?
2. What affect will offshore export terminals have on Permian flow dynamics?
3. Which regions in the US Gulf Coast will attract Permian barrels?

-Sue Neville
